ZRR-2406 熱交換器
更新：14-10-29 09:19 點擊：
產品介紹
產品簡介 Product Introduction
在空調制冷系統中,制冷劑管路可分為高壓和低壓兩部分,高壓制冷劑的溫度較高,需要冷凝器來冷卻，而經過蒸發器的低壓，需要氣液分離器來分離氣態和液態的制冷劑，而液態的制冷劑則需要時間和溫度升高蒸發，成為氣態后才能進入壓縮機，避免液壓縮，以延長壓縮機的使用壽命。
熱交換氣液分離器的功能是把高壓、高溫需要冷卻的制冷劑與低壓低溫需要溫度來蒸發的制冷劑兩個管路集中通過一個容器中，相互以高低溫傳遞，使得需要冷卻的制冷劑得到低溫，需要加熱的制冷劑得到高溫，在經過這一冷熱交換的作用后，系統的效率將會大大提升，才能達到更好的制冷效果。
The cold heat change was mad the fluid seperator the function is the cold intermediary and the low pressure, the low temperature which the high pressure, the high temperature needs to cool needs the cold intermediary two pipelines which the tempreature evaporates to concentrate in a vessel, mutually by high low temperature conduction. Enable the cold intermediary which needs to cool to obtains the low temperature, needs to heat up the cold intermediary obtains the high temperature, after passes through the cold heat change function, the system efficiency will be able to the big promotion, to be able to achieve the best refrigeration effect.

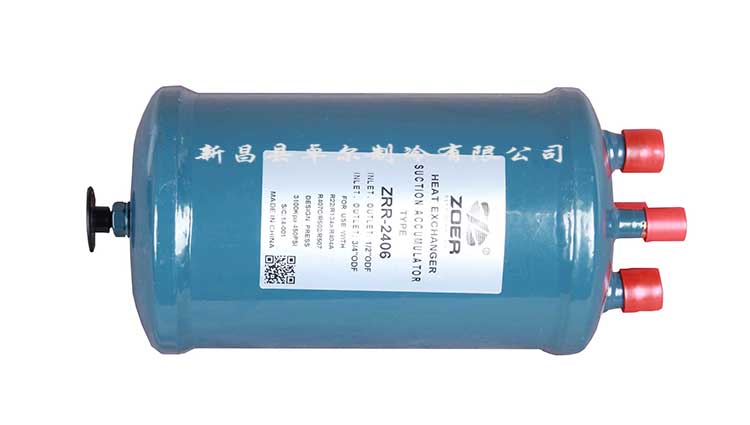

產品展示 Product Display
產品特點 Product Fedture
●"U"型彎管設計保證最大制冷劑流量和截獲最少的油
"U" tube design keeps maximum refrigerant flow and minimum oil blocking
●儲液器兼容HFC、HCFC、CFC制冷劑和它們相應的油
Products are compatible with HFCs, HCFCs, CFCs, as well as with their associated oils and additives
●推薦在蒸發溫度低于-15℃的制冷裝置中安裝熱交換器
It is strongly recommended to assemble Cooling & Heating Exchanger to the refrigeration system whose evapour temperature lower phan -15℃
產品屬性 Product Attribute
|
產品說明 Specifications |
|||||||
|
|
|||||||
|
高溶解水分和去除酸的能力強 |
|||||||
|
|
|||||||
|
命名方式 |
例如：ZRR-2406 |
||||||
|
Nomenclature：For Example ZRR-2406 |
|||||||
|
ZRR |
24
|
06 |
|
||||
|
Molecular Series |
Model Number |
Connection |
|
||||
|
|
|||||||
|
尺寸數據 |
Dimensional Data |
||||||
|
|
|||||||
|
型號 Description |
接管尺寸 Connection Size |
外形尺寸Dimensions
|
|||||
|
低壓口徑
Low pressure connection |
高壓口徑
High pressure connection |
A
|
B | C | D |
容量(L)
volume |
|
|
ZRR-2406 |
3/4 |
1/2
|
316 |
75 | 75 | 140 |
3.8
|
