ZRW-569417 油分離器
更新：14-11-11 16:53 點擊：
產品介紹
產品簡介 Product Introduction
壓縮機在運轉中,壓縮機排氣出口冷媒通常含有大量的 冷凍機油，為了保證壓縮機不致流失大量冷凍機油，及防止冷凍機油隨著冷媒流向系統中影響冷凝器散 發熱功能，及蒸發器的制冷效果，所以在壓縮機和冷凝器之間必須裝一臺油分離器，使冷凍機油和冷媒 分離，讓油自動回入壓縮機曲軸箱內?；赜脱b置是以油分離器內底部的浮球閥操作，再由高低壓差原理 一起完成。保證壓縮機不缺油，以達到最好的制冷效果。
When compressor is in operation, the outlet of compressor always has lots of refrigerant oil. We need to install an oil separator between compressor and condenser to separate the refrigerant oil and refrigerants in order to prevent the compressor not lose too much refrigerant oil and prevent the refrigerant oil flow to system with refrigerants to interfere the condenser’s heat function and evaporator cooling function. Then the oil will flow back to the compressor crankcase. Oil- return device operates on the ball valve moving on the bottom of oil separator and the high-low voltage theory. The oil separator can ensure the sufficiency of oil in compressor and let the compressor reach its best cooling performance.

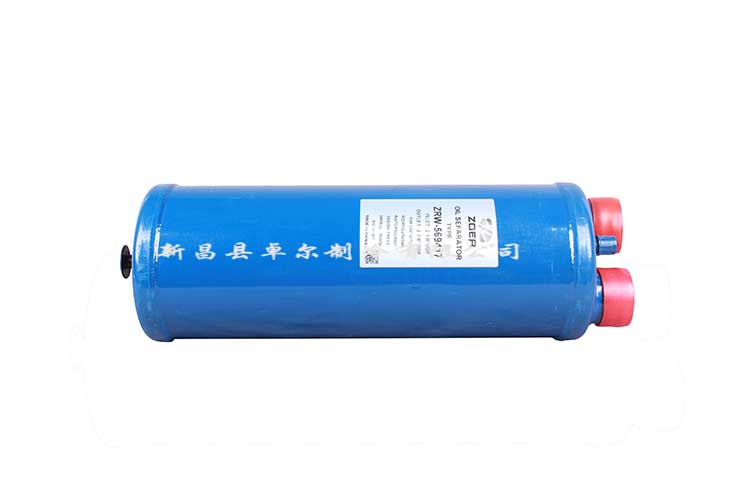

產品展示 Product Display
產品特點 Product Fedture
●可靠的針形閥關閉系統
Reliable needle valve closing system
●帶有鋼制回油系統的密封結構(1/ 4"或3/ 8"螺口)
Steel oil return system with hermetic welded construction (1/4''or3/8''SAE connectors)
●減小系統高壓端的振動和噪聲】
Can reduce the vibration and noise of system high pressure end
產品屬性 Product Attribute
|
產品說明 Specifications |
||||
|
|
||||
|
● 儲油量：55824-569417為600ml，56909-569417為800ml |
||||
|
|
||||
|
命名方式 |
例如 ZRW-569417 | |||
| Nomenclature:For Example ZRW-569417 | ||||
| ZR | W | 5694 | 17 | |
|
Series |
Welded | Model Number |
Connection Size （in2-1/8" ） |
|
|
|
||||
|

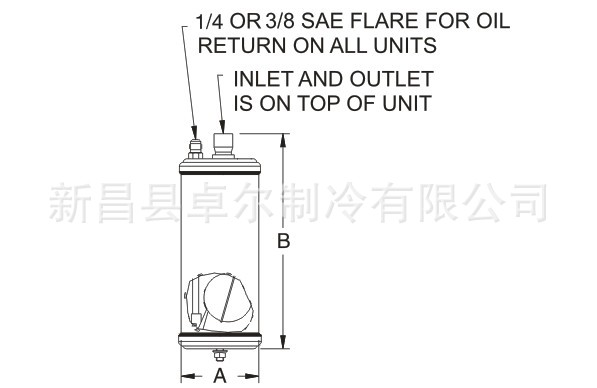

尺寸數據 |
Dimensional Data |
|||
|
|
||||
|
型號 Description |
接管尺寸Connection Size (ODF) | 外形尺寸Dimensions | 對應型號Corresponding Description | |
| A | B | |||
|
ZRW-569417 |
2-1/8 | 159 | 485 | ZRW6205 |
