產品介紹
產品簡介 Product Introduction
可更換實芯體的ZRA系列干燥過濾筒采用法蘭連接密封,對設備調試和正常使用后的維護保養提供了方便，可更換濾芯式吸氣過濾器最大特點是用于壓縮機馬達燒 毀后的系統及有大量水份進入的系統。該產品具有較高的清理吸附能力（應該安裝相應的濾芯），用于氟化物制冷劑的冷凍、冷藏和空氣調節裝置的液體、吸氣管路 中。
ZRA take-apart filter drier with exchangeable solid core uses the flange connection to seal. That is very convenient to adjust and maintain the equipment. This steel liquid and suction core shell is especially suitable for use in conditions where compressor damage has occurred or heavy ingress of water in the system. It has super cleaning and absorption abilities (to be equipped the available cores). It can be used in the liquid line and suction line of the refrigeration system for cold storage and air adjusting equipment.

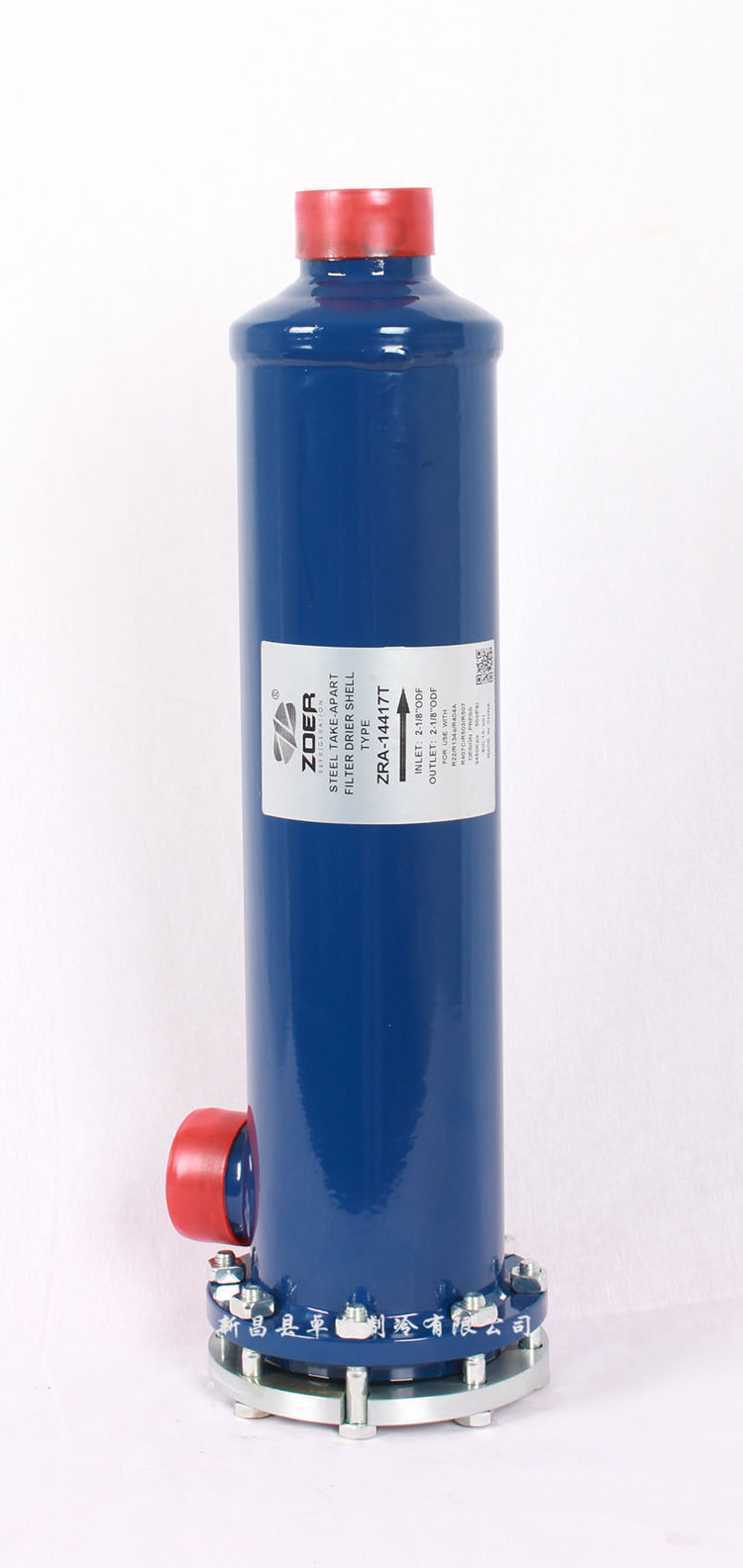

產品展示 Product Display
產品特點 Product Fedture
●可與所有品牌的48系列模制干燥濾芯和吸氣濾芯及百褶式濾芯匹配
Can be matched well with all brands of 48 series of LineFilter Blocks and Suction Line filter cores
●簡化的內部零件便于產品的安裝，且所有零件均為有鍍層的鋼制件
Simple internal parts making easy installation, and all partsare steel Galvanized
產品屬性 Product Attribute
| 產品說明 Specifications | |||||||
|
●液管上使用可選擇ZRD-48或ZRH-48干燥濾芯 Can choose ZRD-48 or ZRH-48 for liquid line ●吸氣管上使用可選擇ZRF-48或ZRX-48吸氣濾芯 Can choose ZRF-48 or ZRX-48 for suction line ●所有型號發貨時不帶干燥或吸氣濾芯 All the types are shipped without filter or suction line cores |
|||||||
| 產品命名方式 | 例如：ZRA-14417T | ||||||
| Nomenclature：For Example ZRA-14417T | |||||||
| ZRA | 144 | 17 | T | ||||
|
ZRA Steel Take -Apart Series |
Unit Size (in cu. in. ) |
Connection Size （in2-1/8" ） |
System Service? T=Liquid Line Services??? SV=Suction Line Series |
||||
| 尺寸數據 | Dimensional Data | ||||||
 |
|||||||
| 進出口尺寸 | 芯體數量 | 過濾面積 | 外形尺寸 | ||||
| A | B | C | D | E | |||
| 2-1/8 | 3 | 144 | 532 | 449 | 92 | 114 | 151 |
