產品簡介  Product Introduction

      可更換實芯體的ZRA系列干燥過濾筒采用法蘭連接密封,對設備調試和正常使用后的維護保養提供了方便，可更換濾芯式吸氣過濾器最大特點是用于壓縮機馬達燒 毀后的系統及有大量水份進入的系統。該產品具有較高的清理吸附能力（應該安裝相應的濾芯），用于氟化物制冷劑的冷凍、冷藏和空氣調節裝置的液體、吸氣管路 中。

       ZRA take-apart filter drier with exchangeable solid core uses the flange connection to seal. That is very convenient to adjust and maintain the equipment. This steel liquid and  suction core shell  is especially suitable for use in conditions where compressor damage has occurred or heavy ingress of water in the system. It has super cleaning and absorption abilities (to be equipped the available cores). It can be used in the liquid line and suction line of the refrigeration system for cold storage and air adjusting equipment.

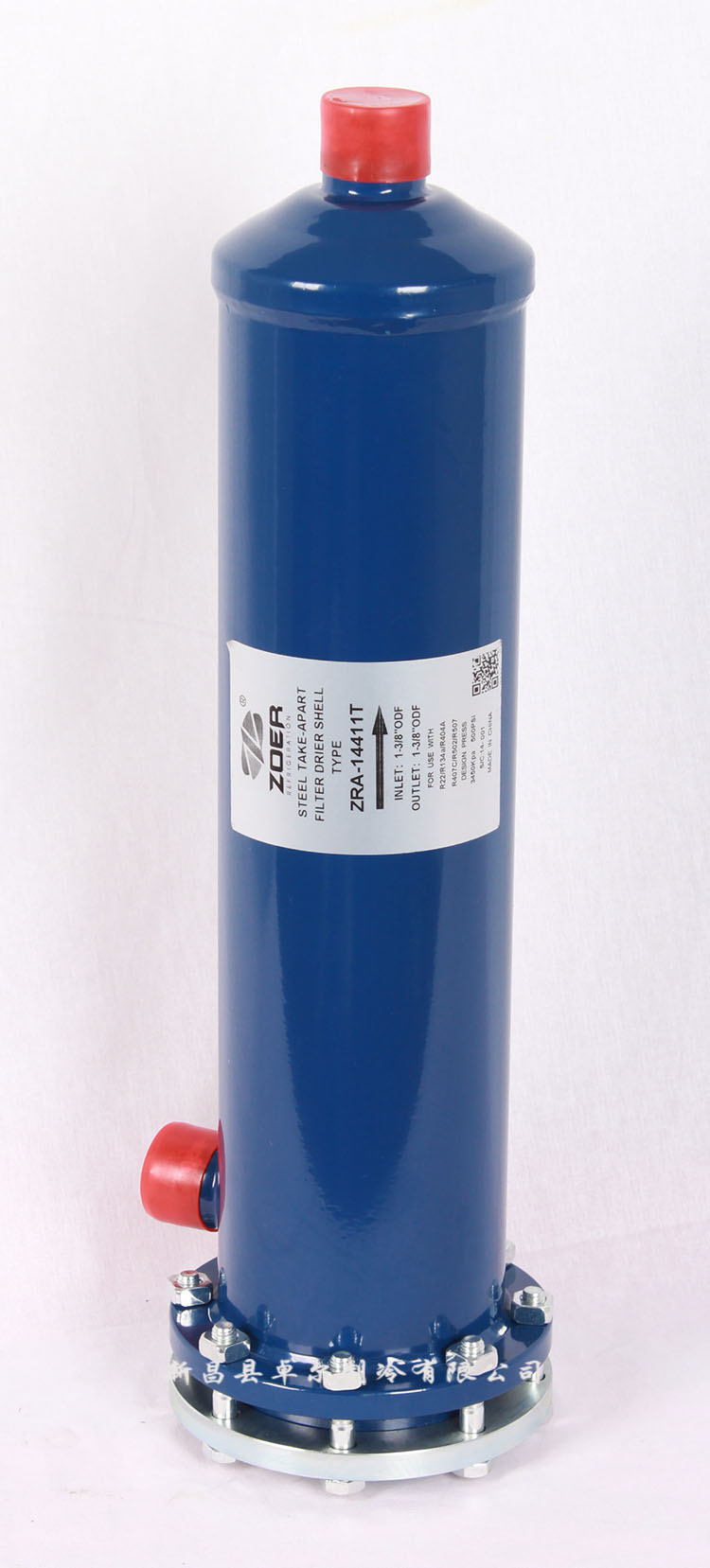

產品展示  Product Display



產品特點  Product Fedture


●可與所有品牌的48系列模制干燥濾芯和吸氣濾芯及百褶式濾芯匹配

Can be matched well with all brands of 48 series of LineFilter Blocks and Suction Line filter cores

●簡化的內部零件便于產品的安裝，且所有零件均為有鍍層的鋼制件

Simple internal parts making easy installation, and all partsare steel Galvanized



產品屬性  Product Attribute

產品說明 Specifications
●液管上使用可選擇ZRD-48或ZRH-48干燥濾芯 Can choose ZRD-48 or ZRH-48 for liquid line ●吸氣管上使用可選擇ZRF-48或ZRX-48吸氣濾芯 Can choose ZRF-48 or ZRX-48 for suction line ●所有型號發貨時不帶干燥或吸氣濾芯 All the types are shipped without filter or suction line cores
命名方式	例如：ZRA-14411T
	Nomenclature：For Example ZRA-1449T
	ZRA	144	11		T
	ZRA Steel Take -Apart Series	Unit Size (in cu. in. )	Connection Size （in1-3/8" ）		System Service  T=Liquid Line Services    SV=Suction Line Series
尺寸數據	Dimensional Data
進出口尺寸	芯體數量	過濾面積	外形尺寸
			A	B	C	D	E
1-3/8	3	144	524	441	87	114	151
